Eddy-10 is an off-the-shelf, customer programmable BLDC controller designed for 24 and 48VDC motors rated up to 10 Amps.
While no single brushless DC controller can be used for every BLDC motor, the proprietary design of this six-step trapezoidal sensor-less control has been able to run nearly all BLDC motors (within its power range) tested to date.
Controller Customization and Programming

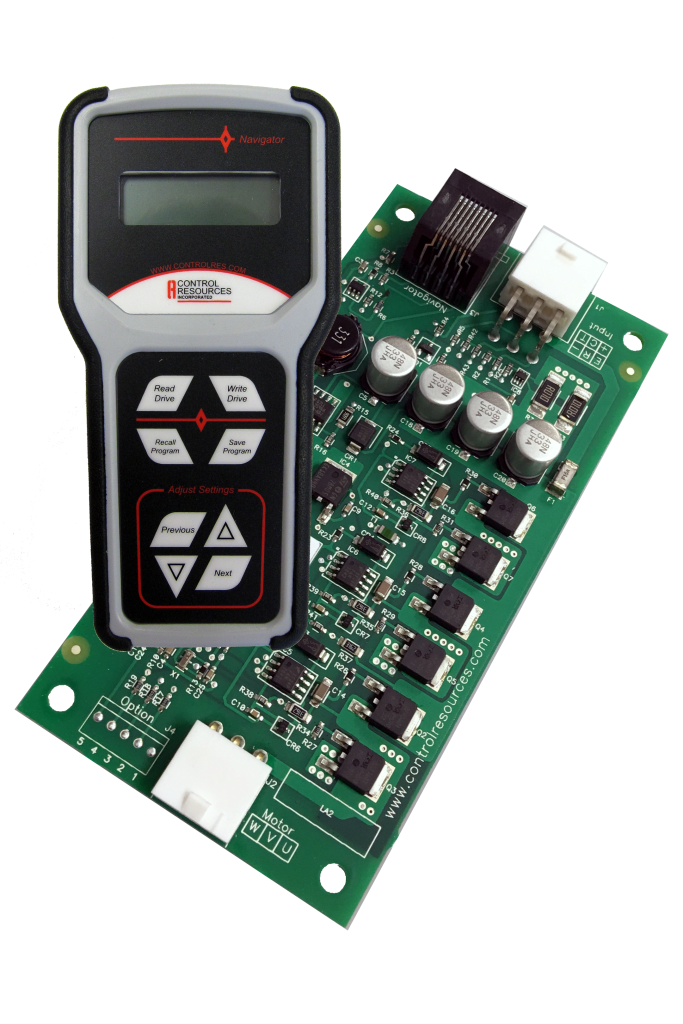

The Eddy-10 BLDC motor controller can be customized for your application using the Navigator hand-held programmer (pictured). The Navigator can be used to program up to 17 variables including fixed speed or controlling motor speed from a control input (up to 10VDC). Other Eddy-10/Navigator programming variables include motor speed range, motor pole count, current / torque limits, acceleration / deceleration rates and motor on / off set points.
Built-In Protection and Feedback
The Eddy-10 also includes voltage, current, temperature protection and a status LED to give feedback in the event a fault does occur.
Key Eddy-10 Features:
- Off-the-Shelf: The Eddy-10 is a ready-to-use brushless DC motor controller reducing the need for custom designs.
- Broad compatibility: Supports 2-16 pole, 24 and 48VDC BLDC motors rated up to 10 Amps.
- Can run a wide range of BLDC pumps, fans and motors: Thanks to its proprietary design, the Eddy-10 can operate most BLDC motors within its power range.
- 17 Customer-programmable variables: Including min. & max. motor speed, min. & max. control signal, motor on/off set points, ramp rate, current limits and more .
- 2 Year Warranty: The Eddy-10 comes with a two-year warranty, providing peace of mind and assurance of quality. This warranty reflects the confidence in the product’s durability and reliability.
- Custom Control Design and Manufacturing by Control Resources: Control Resources specializes in custom control solutions. If the standard Eddy-10 controller does not meet your specific requirements, CRI can provide a custom-designed BLDC controller tailored to your application. This service ensures that even the most unique or demanding applications can be accommodated.
Ordering the Eddy 10 Eddy-10 Brushless DC Motor Controller
Specifications / Options
- Power Source: 20-56VDC
- Approved Motors:
- Brushless DC
- 24VDC / 48VDC
- 10A max
- 2–16 Poles
- 15Amp Fuse Protection
- Speed Control Input: 0-10VDC
- Open Loop, Closed Loop or Fixed Speed Control
- Motor Speed Tolerance: ±2% at Room Temperature
- Weight: 1.5 oz (42 grams)
- Dimensions (LxWxH) 4.8”x 2.4”x 0.68”
- Operating Environment: -20°C to 55°C, 0-95% RH
- Customization Options:
- Aluminum Enclosure
- Custom Control Inputs
- Vertical Connectors
- Sinusoidal Wave Forms
- Sensored Wave Designs
- Custom Voltages and Currents
Features
- Navigator Programmable Variables
- Motor Pole Count
- Min & Max. Motor Speed
- Min & Max. Control Signal
- Motor ON/OFF Set Points
- Ramp Rate
- Min & Max Voltage Lockout
- Current Limits
- Navigator Monitoring Readings
- Motor Speed
- Motor Current Draw
- Controller Temperature
- Supply Voltage
- Forward/Reverse Contact Closure
- On / Off Contact Closure
- Motor Speed Tach Signal Output
- On-board Power/Fault LED
- RoHS Compliant
- Factory Programming for Orders as Few as 50 Units
- 2 Year Warranty
- Made in the USA
Eddy-10 Dimensions
Eddy-10 Part Numbers
| Part No. | Current Rating (55ºC) | Description |
|---|---|---|
| BLD700-F | 7 Amp | 7A Brushless DC Controller |
| BLDJ00-F | 10 Amp | 10A Brushless DC Controller |
| H129-F | n/a | Eddy-10 Hardware Pack |
| PRG00-F | n/a | Navigator Hand-Held Programmer |
Additional Information
• Eddy-10 Operation/Installation Instructions
• Navigator Remote Programmer Datasheet
• Eddy-10 STEP CAD drawing (.step)
NOTE: If the CAD file opens as a new browser window with text, right-click the link, select “Save Link As”, and select a local folder to save the file.
• Price List
