SmartFan®Wisp II
Fan Speed Control Probe
SmartFan Wisp II Fan Speed Control
SmartFan Wisp II Fan Speed ControlOperation/Installation Manual

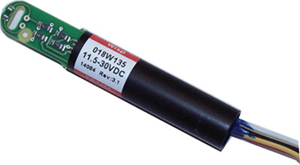

SmartFan Wisp II is designed for small DC fan speed control applications and includes both a temperature control and sensor circuit packaged in a probe for convenient remote or on-fan mounting. The controller uses a linear operating principle, applying a smooth DC voltage to the fans. It is available for both Closed-Loop (temperature regulating) and Open-Loop (temperature compensating) applications. The controller’s power rating is sufficient to control up to three typical 120 mm fans.
Wisp II accepts an 11.5 to 30 VDC supply voltage range for controlling 12 and 24 VDC fans. The Wisp II design allows maximum flexibility for special applications including on-off capability, 48 VDC operation, temperature alarm, and custom control parameters. Contact CRI customer service for details.
In addition to the standard line of SmartFan controls and alarms, Control Resources also provides custom control design and manufacturing services to provide you with the optimum cooling solution for your OEM control applications.
In addition to the standard line of SmartFan controls and alarms, Control Resources also provides custom control design and manufacturing services to provide you with the optimum cooling solution for your OEM control applications.
Product Features – SmartFan Wisp II Fan Speed Control
- Noise reduction typically 15 dB(A) at idle speed
- Completely self contained including sensor
- Controls 12, and 24 VDC fans
- Accepts a supply voltage range of 11.5 to 30 VDC
- 70ºC maximum operating temperature
- Supplied with 15 inch (24 AWG) wires and mounting clamp
Dimensions – SmartFan Wisp II Fan Speed Control
Part Numbers – SmartFan Wisp II Fan Speed Control
| Part Number1 | Type2 | Supply Voltage Range | Maximum Watts to Fans3 |
Control Temperature | Full Speed/Idle Speed Temperatures |
| 018W135-F | Closed-Loop | 11.5 to 30 VDC | 20 Watts | 35°C | N/A |
| 018W140-F | 40°C | ||||
| 018W135P-F | Open-Loop | N/A | 35°C / 23°C |
1. Part numbers above are RoHS 6/6 compliant.
2. Closed-Loop models are best installed near the equipment exhaust; Open-Loop models at the air inlet.
3. Air temperature of 70 °C or less. Minimum air velocity of 200 ft/min or greater is required across the probe housing.
Manual Pages – SmartFan Wisp II Fan Speed ControlOperation/Installation Manual
Use the links below for addtional manual pages or for a complete manual or click on the Operation/Installation Manual PDF link above.
SmartFan Wisp II – your choice for small DC fan speed control and temperature control applications.
