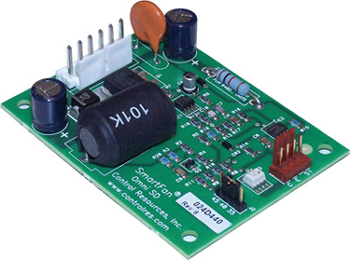

The Omni SD Fan controller holds a selected chassis temperature near constant (+0°C, -4°C) by controlling the voltage (speed) of an air mover. Under normal thermal conditions, fans run at a reduced speed, keeping fan noise to a minimum and reducing air filter changes. Under less than optimal thermal conditions, fans adjust to hold the chassis temperatures near constant until maximum fan speed is attained.
- Fan Speed vs. Temperature Control for 12, 24, 48V Fans
- 5 Amp rating
- Includes temperature alarm
- Factory Customization for Orders as Low as 50 Pieces
The Omni SD features smooth DC voltage and high frequency resulting in maximum power efficiency, minimum size and low motor noise. Each unit can control any number of 2 or 3 wire 12, 24 or 48 VDC air movers with a combined current rating up to 5 Amps. The Omni SD also features a temperature alarm connection that is triggered if the sensed temperature reaches 10°C over the selected control temperature or if power to the controller is lost.
The Omni SD can be customized for many applications including conformal coating, custom temperature sensor termination, special idle speeds, control temperatures, alarm trigger temperatures and control slopes. Contact Control Resources customer service to ask about modifying the Omni SD for your application or for designing custom products from the ground up to meet your specification.
Specifications
- Power Source:
- 10 to 15 VDC for 12V Fans
- 20 to 30 VDC for 24V Fans
- 42 to 58 VDC for 48V Fans
- Current Rating: 4 Amps @ 55°C or less, 5 Amps in air-flow (200 ft/min)
- Operating temperature: -20°C to 55°C full power, derated up to 70°C
- Storage temperature: -40°C to 125°C
- Weight: 1.8 oz. (52 grams)
- RoHS (6/6) compliant
Features / Selectable Options
- Choose 12, 24, or 48 VDC nominal voltage ratings
- High power efficiency: typically greater than 90%
- Noise reduction: typically 13 dB(A) or more at idle speed
- Constant idle voltage regardless of input voltage
- Optically isolated temperature alarm output sinks up
- to 1.0 mA (normally closed)
- Selectable Control Temperatures of 35°, 40°, or 45°C (74°, 80°, or 86°C when P3 sensor is used)
- Compatible with all SmartFan temperature sensors
SmartFan Omni SD Fan Control & Alarm Dimensions and Connections
SmartFan Omni SD Fan Control & Alarm Part Numbers
Part Number1 | Supply Voltage Range | Maximum Fan Wattage (55°C) | |
200 Ft/Min | Still Air | ||
012D440-F | 10 to 15 VDC | 60 Watts/5.0 Amps | 48 Watts/4.0 Amps |
024D440-F | 20 to 30 VDC | 120 Watts/5.0 Amps | 96 Watts/4.0 Amps |
048D440-F | 42 to 58 VDC | 240 Watts/5.0 Amps | 192 Watts/4.0 Amps |
H104-F | Hardware Pack |
1. Temperature sensor required.
