LabStrobe™STB100-F
Pocket LED Stroboscope

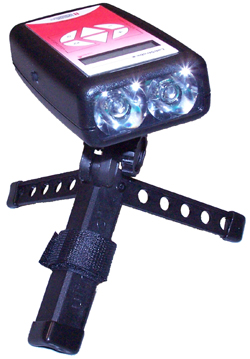

LabStrobe STB100-F Pocket LED Stroboscope
with optional Tripod
Please note: No shipment tracking on standard US Postal Service mailings.
- Contact Factory for International Shipment Tracking and Expediting -
Distributors Wanted
Call 978-486-4160
LabStrobe Pocket LED StroboscopeOperation/Installation Manual

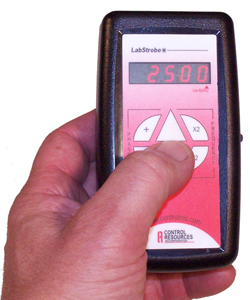

LabStrobe STB100-F is a hand held Pocket LED stroboscope used to measure the speed of rotation or frequency of vibration of a fan, motor, speaker, other mechanical part or system. The latest in LED technology provides this pocket sized LED stroboscope with unparalleled brightness and battery life at this price point
LED stroboscopes have the advantage of not loading or disturbing the equipment under test. Mechanical equipment may be observed under actual operating conditions. Parasitic oscillations, flaws, and unwanted distortion at high speeds are readily detected.
The LabStrobe Pocket LED Stroboscope is ideal for field work, test benches, laboratories, universities and repair facilities.
The LabStrobe Pocket LED Stroboscope is ideal for field work, test benches, laboratories, universities and repair facilities.
Product Specifications – LabStrobe Pocket LED Stroboscope
- Size: 4.9″ (124mm) x 2.8″ (71mm) x 1.3″ (33mm)
- Power: 3V (2 AA Batteries included)
- New & Improved Brightness: 550 LUX @ 50 cm (19.7″), 6,000 FPM
- Six button membrane for easy operation
- Flash rate adjustment (4 buttons)
- Coarse: Multiply by 2, divide by 2
- Fine: Up & Down (1-15 FPM increments)
- Flash phase adjustment (2 buttons)
- Up & Down, 0-360° adjustment
- Flash rate adjustment (4 buttons)
- Flash rate range in FPM: 60 – 99,990
- Flash rate range in Hz: 1 – 1,666
- Flash rate accuracy:
- 60 – 17,300 FPM: +/- 1 LSD
- 17,300 – 99,990 FPM: +/- .009%
- Typical Alkaline battery life: 11 hours
- Operating temperature: 14° to 122°F (-10° to 50°C)
- Tripod mountable (1/4 – 20 UNC thread)
- Weight: 6.1 oz (173 grams), batteries included
Product Features – LabStrobe Pocket LED Stroboscope
- Lightweight, pocketsize design
- Battery powered for portability
- Low battery indicator
- Flash rate recall: On power up, the last flash rate that was displayed
for 3 seconds or more is shown on the display - Two high brightness LEDs
- No costly lamp to replace
- No heat generation
- Ultra high efficiency for longer run time
- Fast response rate
- Immune to mechanical shock and vibration
- Silent operation
- Storage bag included
- Optional tripod – Order P/N TP1-F
- RoHS compliant
- EN55011 Class B: 2004/08/EC Compliant
- Warranty: 2 years
- Made in the USA
Part Numbers – LabStrobe Pocket LED Stroboscope
| Part Number | Description |
| STB100-F | LabStrobe Pocket LED Stroboscope |
| TP1-F | (optional) Tripod |
Manual – LabStrobe Pocket LED StroboscopeOperation/Installation Manual
Use the links below for addtional manual pages or for a complete manual or click on the Operation/Installation Manual PDF link above.
