LabPower™DS1502
Dual 15V Benchtop Power Supply
LabPower DS1502Dual 15V Benchtop Power Supply
LabPower Dual 15V Benchtop Power SupplyOperation/Installation Manual

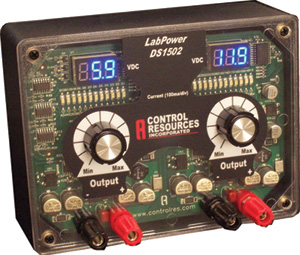

LabPower DS1502 is a dual 15V benchtop power supply designed for powering small digital and analog circuits. Its compact size takes very little valuable bench space and makes this dual 15V benchtop power supply very portable. Both 15 volt power supplies are independent allowing +/- configurations as well as dual supply logic circuits. The outputs are fully protected from short circuit faults.
The short circuit current is 1.6 amps and will shut down to 0 amps in approximately 15 seconds to prevent damage to external circuits. The output automatically recovers when the short is removed. The active current limiting will fold back the output voltage to prevent arcing and damage to external circuits when a short is applied. This dual 15V benchtop power supply is ideal for test benches, laboratories, universities and repair facilities.
Specifications – LabPower Dual 15V Benchtop Power Supply
- Input: 115/230 VAC, 50/60 Hz
- Input fuse: 0.5 Amp time lag
- Output X 2: 0 – 15 VDC
0 – 12 VDC @ 1000 mA typical
>12 – 15 VDC @ 300 mA typical - Terminals: Dual color-coded binding posts
- Meter: Dual digital VDC, 0.1 VDC resolution, 2% accuracy typical
- Current display: Dual 12 segment bargraph LED
- Size: 4.9 “H x 6.2″W x 3.3 “D (124mm H x 157mm W x 84mm D)
- Operating temperature: -20°C to 40°C
- RoHS compliant
- Weight: 2.4 lbs (1.1kg)
- Warranty: 1 year parts, 5 years workmanship
- Made in the USA

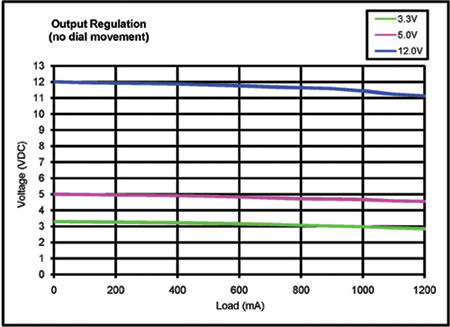

Output Regulation – LabPower Dual 15V Benchtop Power Supply
Part Numbering – LabPower Dual 15V Benchtop Power Supply
| Part Number | Input Power | Power Cord |
| DS1502A-F | 115 VAC | US Style |
| DS1502B-F | 230 VAC | Not Included (see below) |
| PC1-F | UK Style Power Cord | |
| PC2-F | Continental Europe Style Power Cord | |
Manual – LabPower Dual 15V Benchtop Power SupplyOperation/Installation Manual
Use the links below for addtional manual pages or for a complete manual or click on the Operation/Installation Manual PDF link above.
- LabPower Dual 15V Benchtop Power Supply CATALOG PAGE
- MANUAL
- Manual de Operación/Instalación en Español
LabPower DS1502 Dual 15V Benchtop Power Supply
