SmartFan® Aurora
DC Motor Speed Control for Fans, Pumps and Motors

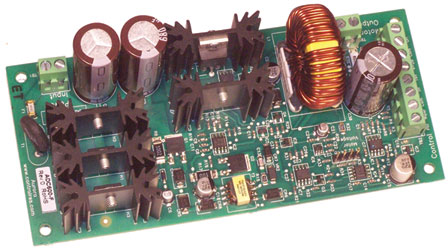

SmartFan Aurora DC Motor Speed Control
SmartFan Aurora DC Motor Speed ControlOperation/Installation Manual
SmartFan Aurora is a compact, economical DC motor speed control designed for OEM applications in HVAC, electronic and industrial control markets. Aurora regulates DC motor speed from a control signal (0-5 VDC, 0-10 VDC, 0-20mA or potentiometer). Voltage to the motor is varied using a buck control circuit that operates at a high frequency to achieve maximum power efficiency at minimum size. 100% testing in an ISO 9001:2008 manufacturing facility insures a robust, quality product for your DC motor speed control requirements.
Product Features – SmartFan Aurora DC Motor Speed Control
- Soft start and current limiting at start up
- Full analog feedback for closed loop regulation
- High power efficiency, typically greater than 90%
- Special factory configuration option available to set:
- IR compensation
- Current limit
- Acceleration / Deceleration rates
- Min / Max speeds

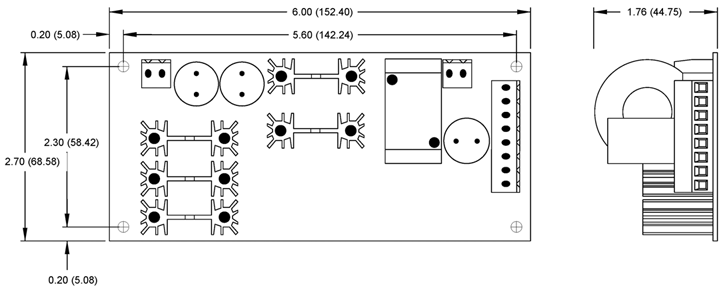

- Mounting: PCB mount or DIN Rail mount
- Connections: Terminal Blocks
- Compatible with SmartFan TachScan Speed Alarms
- Operating temperature: -20°C to 55°C
- Storage temperature: -40°C to 125°C
- Weight: 8.3 oz. (236 grams)
- RoHS (6/6) compliant
Specifications – SmartFan Aurora DC Motor Speed Control
- Power Source:
- 10 to 72 VDC
- 12 to 48 VAC, 50/60 Hz
- Full wave bridge rectification circuit
- Current Rating: 6 Amps @ 55°C or less
- 12, 24 or 48 VDC operation set by jumper
- with full 0-12/24/48 VDC control range
- Filtered DC output provides a true 1.0 form factor providing important benefits:
- Motor runs quieter
- Motor runs cooler
- Allows high voltage power source to run low voltage motors without damage
- Controls motor speed based on isolated control signal inputs:
- 0-20 mA control signal
- 0-5 VDC control signal
- 0-10 VDC control signal
- Remote potentiometer
- Off-Input allows start/stop without breaking AC lines
- Cycle by cycle 8 Amp over current protection
- Input is fused at 10 Amps
Stock Product ADC600-F
